Product Details:
|
Material: | SUS 304/316 | Tank Capacity: | 96Liter |
---|---|---|---|
Tank Size: | 600X500X400 Mm | Frequency: | 40KHz / 28KHz |
Power Supply: | AC 220V 50Hz | Transducer: | 36pcs |
Highlight: | Oil Removal Industrial Ultrasonic Cleaning Machine,Metal Wire Industrial Ultrasonic Cleaner,Single Slot Industrial Ultrasonic Cleaner |

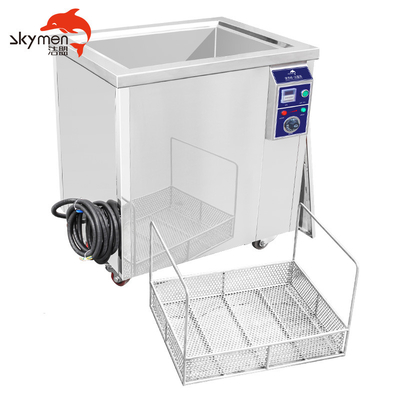

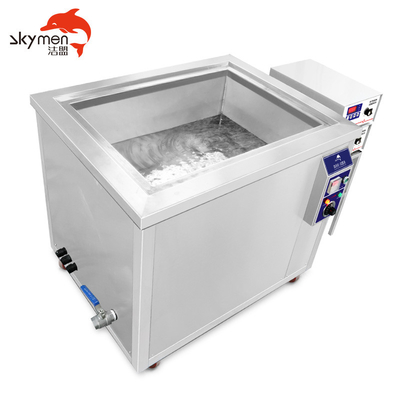

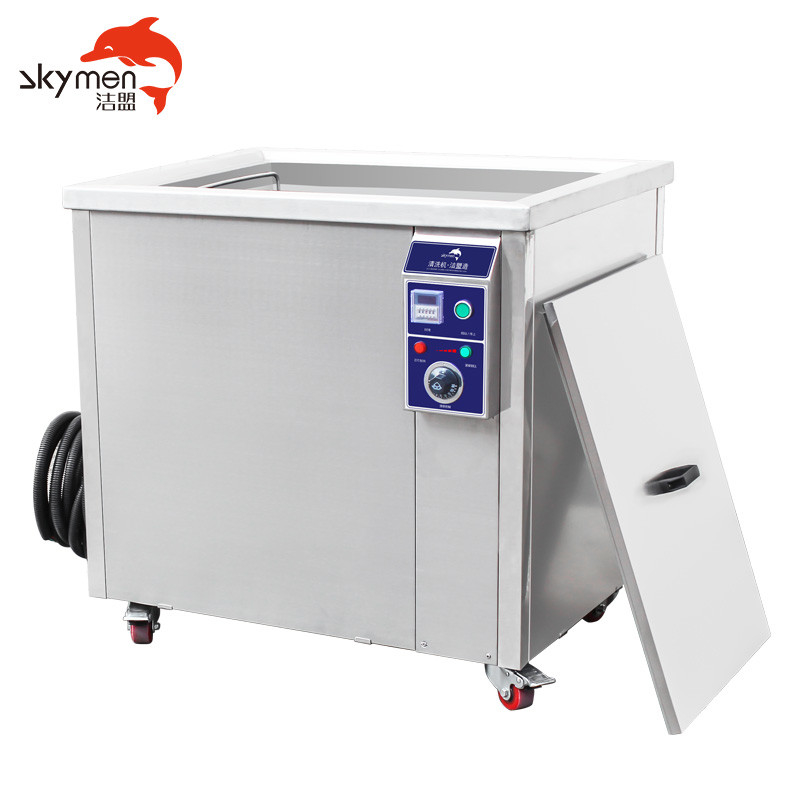

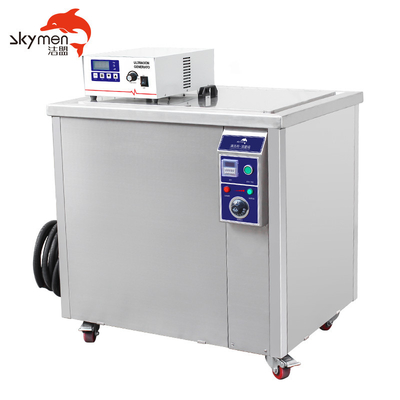

Industrial Ultrasonic Cleaning Machine Metal Wire Single Slot Ultrasonic Cleaning Oil Removal Cleaning Equipment
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt.
Features:
Skyment Upgraded Cleaning Technology Ultrasonic Cleaner--Explosion Proof Design
1-CT4 Explosion-proof electrical cabinet
2-Imported compressor
3-Refrigeration coil Better customer experience and safe for you.
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
Model | JP-360ST |
Ultrasonic power9 | 1800W (36pcs transducers) |
Frequency | 40KHz / 28KHz |
Housing material | SUS304 |
Tank material | SUS304 / 316 |
Heating power |
4500W |
Tank capacity | 135L |
Timer | Digital 1-99m adjustable |
Heater | Room temperature~150℃ |
Voltage | AC 220V, 50Hz |
Tank size | 600X500X450mm |
Certificate | ISO9001:2008|CE & RoHS |
From 10 galles to 200 gallons ,size could be customized
Similar models with different tank volume:
Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
JTS-1012Z | 500X300X250 | 38L | 600W | 1500W | 12pcs |
JTS-1018Z | 500X350X300 | 53L | 900W | 1500W | 18pcs |
JTS-1024Z | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
JTS-1030Z | 550X450X400 | 99L | 1500W | 3000W | 30pcs |
JTS-1031Z | 800X300X400 | 96L | 1500W | 3000W | 30pcs |
JTS-1036Z | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
JTS-1048Z | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
JTS-1060Z | 800X600X550 | 264L | 3000W | 6000W | 60pcs |
JTS-1072Z | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
JTS-1084Z | 1500X700X400 | 420L | 4200W | 15000W | 84pcs |
JTS-1096Z | 1200X500X800 | 480L | 4800W | 15000W | 96pcs |
JTS-1108Z | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
JTS-1120Z | 1000X800X800 | 640L | 6000W | 21000W | 120pcs |
JTS-1132Z | 1000X1000X600 | 800L | 6600W | 24000W | 132pcs |
JTS-1144Z | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
JTS-1216Z | 1500X1000X1000 | 1500L | 10800W | 36000W | 216pcs |
How does Ultrasonic Cleaner work?
Before and after :
Company Profile
Skymen Cleaning Equipment Shenzhen Co. Ltd., that has worked on ultrasonic cleaner for more than 13 years.Our ultrasonic products fully range from mini household ultrasonic cleaner, benchtop stainless steel small ultrasonic cleaner, and industrial large tank ultrasonic cleaner as well as Immersible ultrasonic transducer system.Our company devote to research and development, with strong engineer teams.Otherwise, we accept customer’s idea and want to develop new products together.
